Standard User neilll
(regular) Fri 14-Apr-17 13:56:32
Print Post

Line Monitoring software needed for FTTC


[link to this post]

Hi,
Am having issues with my line and want some software to monitor (and log) all my disconnects, can anybody recommend something please?

OpenReach Fibre Modem failed last week, since last night have been running Draytek 130 on latest firmware.

Had a reconnect this morning around 06:30 and want to be able to log these to build a case against BT.

Last year I was getting 50mb+ then OpenReach cut our line by mistake while repairing another connection in our street. Since then have only managed 30mb+ and since end of March am down to 19mb and currently sync at 11400.

Up Down Sync BRAS Int Sync Date
800 11033 11400 TR101 Auto 13-Apr-2017 20:28
800 11033 11399 TR101 Auto 09-Apr-2017 05:24
1295 12675 13096 TR101 Auto 08-Apr-2017 14:46
2000 13877 14338 TR101 Auto 07-Apr-2017 07:47
2296 15282 15789 TR101 Auto 06-Apr-2017 06:38
2696 16098 16631 TR101 Auto 05-Apr-2017 08:36
3200 16455 17001 TR101 Auto 04-Apr-2017 06:01
3215 18258 18863 TR101 Auto 03-Apr-2017 00:22
3759 14237 14710 TR101 Auto 02-Apr-2017 06:38
3509 19169 19805 TR101 Auto 01-Apr-2017 00:32

Regards,
Neill

ZeN Fibre Active (FTTC 50.8/11.3)
Check Point SG730
Exchange - Corby (EMCRRBY)
Standard User RobertoS
(elder) Fri 14-Apr-17 13:58:16
Print Post

Re: Line Monitoring software needed for FTTC *DELETED*


[re: neilll] [link to this post]

Post deleted by RobertoS - sorry, had a brainfade.

Edited by RobertoS (Fri 14-Apr-17 14:01:22)

Standard User neilll
(regular) Sat 15-Apr-17 16:14:57
Print Post

Re: Line Monitoring software needed for FTTC


[re: neilll] [link to this post]

Got a couple of solutions in place now so got some good logging, seems my line drops every morning around 05:20....Sync has now dropped to 10847 and will continue to drop until its stable I guess? (AKA Never)

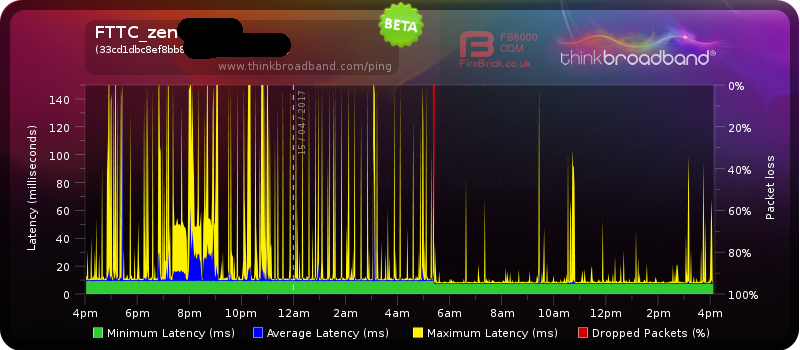

Drops are showing up nicely on BQM >> http://www.goatsurfer.com/images/tech/BQM.png

Plus router stats:

2017 Apr 15 05:21:23 user.info root: [PPP] No response to 6 echo-requests
2017 Apr 15 05:21:23 user.notice root: [PPP] Serial link appears to be disconnected.
2017 Apr 15 05:21:23 user.info root: [PPP] Connect time 1438.9 minutes.
2017 Apr 15 05:21:23 user.info root: [PPP] Sent 151273763 bytes
2017 Apr 15 05:21:23 user.warn cposd: [CPOSD] WAN connection "External" error: PPP Link Control Protocol timed out (no response from server). Contact your service provider.
2017 Apr 15 05:21:29 user.notice root: [PPP] Connection terminated.
2017 Apr 15 05:21:29 user.info root: [PPP] Sent PADT
2017 Apr 15 05:21:29 user.notice root: [PPP] Modem hangup
2017 Apr 15 05:21:29 user.info root: [PPP] Exit.
2017 Apr 15 05:21:29 user.info cposd: [CPOSD] WAN connection "External": PPPoE (PPP over Ethernet) connection terminated after 23 hour(s)
2017 Apr 15 05:21:29 user.warn cposd: [CPOSD] WAN connection "External" error: Connection timed out

Regards,
Neill

ZeN Fibre Active (FTTC 50.8/11.3)
Check Point SG730
Exchange - Corby (EMCRRBY)
