slow speeds - netgear dg834g v4 error reporting ??


[link to this post]

hi there my current router stats


ADSL Link Downstream Upstream
Connection Speed 4768 kbps 448 kbps
Line Attenuation 41.0 db 21.0 db
Noise Margin 7.3 db 21.0 db


about 4 hours ago we had thunder and lightening, since then my speed as been bouncing about from 0.5 to just over 1 meg , the noies margin does seems to be moving about between 6db and 9db at the moment.

i use JDs auto speed tester all the time , and today noticed when it did the ping test it keeps dropping packets

here is a ping test from command prompt ( which looks ok )

C:\Users\PC>ping www.bbc.co.uk

Pinging www.bbc.net.uk [212.58.246.95] with 32 bytes of data:
Reply from 212.58.246.95: bytes=32 time=61ms TTL=52
Reply from 212.58.246.95: bytes=32 time=42ms TTL=52
Reply from 212.58.246.95: bytes=32 time=42ms TTL=52
Reply from 212.58.246.95: bytes=32 time=43ms TTL=52

Ping statistics for 212.58.246.95:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 42ms, Maximum = 61ms, Average = 47ms

when i try to do a bt speed test at the moment i get

The Performance Tester is currently unable to run a speed test for your broadband connection. Please try again shortly, however if this problem persists, raise the issue with your service provider.


is there a way to get more stats out of this router as i know some show errors and such like
Standard User RobertoS
(sensei) Thu 28-Jun-12 14:42:14
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

is there a way to get more stats out of this router as i know some show errors and such like
Below the tweaking bit on this page.

My broadband basic info/help site - www.robertos.me.uk
My domains,website and mail hosting - Tsohost. Internet connection - Plusnet Value Fibre 80/20 trial.

"Where talent is a dwarf, self-esteem is a giant." - Jean-Antoine Petit-Senn.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Standard User XRaySpeX
(eat-sleep-adslguide) Thu 28-Jun-12 14:46:04
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

Click on this link: http://192.168.0.1/setup.cgi?PATH=/bin:/sbin:/usr/bi... and you won't need to mess about with TELNET.

1999: Freeserve 48K Dial-Up => 2005: Wanadoo 1 Meg BB => 2007: Orange 2 Meg BB => 2008: Orange 8 Meg LLU => 2010: Orange 16 Meg LLU => 2011: Orange 19 Meg WBC


Register (or login) on our website and you will not see this ad.

Anonymous
(Unregistered)Thu 28-Jun-12 14:57:59
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: XRaySpeX] [link to this post]

i did a disconnect through the router , then turned off then on, i see that they sync as gone down and its seems like noise has gone up by 3db.

hoping some one else can tell a little more from these current stats , many thanks

# adslctl info --stats
adslctl: ADSL driver and PHY status
Status: ShowtimeRetrain Reason: 0
Channel: INTR, Upstream rate = 448 Kbps, Downstream rate = 3328 Kbps
Link Power State: L0
Mode: G.DMT
Channel: Interleave
Trellis: ON
Line Status: No Defect
Training Status: Showtime
Down Up
SNR (dB): 11.0 21.0
Attn(dB): 40.0 21.0
Pwr(dBm): 19.4 12.1
Max(Kbps): 3616 1028
Rate (Kbps): 3328 448
G.dmt framing
K: 105(0) 15
R: 16 4
S: 2 4
D: 16 8
ADSL2 framing
MSGc: 1 1
B: 105 15
M: 2 4
T: 1 1
R: 16 4
S: 2.1509 4.2500
L: 848 128
D: 16 8
Counters
SF: 27493 27492
SFErr: 5147 1
RS: 934774 465035
RSCorr: 149820 0
RSUnCorr: 51972 0

HEC: 4612 0
OCD: 26 1
LCD: 0 0
Total Cells: 3624192 0
Data Cells: 57107 0
Drop Cells: 0
Bit Errors: 0 0

ES: 397 0
SES: 81 0
UAS: 14 0
AS: 467

INP: 1.20 1.00
PER: 1.88 1.85
delay: 8.60 8.50
OR: 29.75 30.11

Bitswap: 0 0

Total time = 8 min 11 sec
SF = 27493
CRC = 5147
LOS = 0
LOF = 0
ES = 397
Latest 1 day time = 8 min 11 sec
SF = 27493
CRC = 5147
LOS = 0
LOF = 0
ES = 397
Latest 15 minutes time = 8 min 11 sec
SF = 27493
CRC = 5147
LOS = 0
LOF = 0
ES = 397
Previous 15 minutes time = 0 sec
SF = 0
CRC = 0
LOS = 0
LOF = 0
ES = 0
Previous 1 day time = 0 sec
SF = 0
CRC = 0
LOS = 0
LOF = 0
ES = 0
Showtime Drop Reason: 0
Last Retrain Reason: 0
#
#
Standard User XRaySpeX
(eat-sleep-adslguide) Thu 28-Jun-12 15:15:21
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

Running at half-speed and full of errors frown

Are you plugged into test socket behind faceplate? Removed ring wire? Extensions sockets and extension leads? All filtered?

1999: Freeserve 48K Dial-Up => 2005: Wanadoo 1 Meg BB => 2007: Orange 2 Meg BB => 2008: Orange 8 Meg LLU => 2010: Orange 16 Meg LLU => 2011: Orange 19 Meg WBC
Anonymous
(Unregistered)Thu 28-Jun-12 15:19:47
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: XRaySpeX] [link to this post]

yes always test socket

in the info i posted where about is the errors showing , many thanks
Anonymous
(Unregistered)Thu 28-Jun-12 15:25:03
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

what could be causing this, is it worth tying another router?. also checked the phone and the line is clear , no noise or hissing , many thanks
Standard User XRaySpeX
(eat-sleep-adslguide) Thu 28-Jun-12 15:33:43
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

In reply to a post by Anonymous:
where about is the errors showing
SFErr: 5147 1
RSCorr: 149820 0
RSUnCorr: 51972 0
HEC: 4612 0
ES: 397 0 (Error Seconds)
SES: 81 0 (Serious ES)


1999: Freeserve 48K Dial-Up => 2005: Wanadoo 1 Meg BB => 2007: Orange 2 Meg BB => 2008: Orange 8 Meg LLU => 2010: Orange 16 Meg LLU => 2011: Orange 19 Meg WBC
Anonymous
(Unregistered)Sat 30-Jun-12 08:50:11
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: XRaySpeX] [link to this post]

After a few days , things seem back to normal

would my stets ( just taken) indicate this , or is there still a problem, many thanks


adslctl: ADSL driver and PHY status
Status: ShowtimeRetrain Reason: 0
Channel: INTR, Upstream rate = 448 Kbps, Downstream rate = 4992 Kbps
Link Power State: L0
Mode: G.DMT
Channel: Interleave
Trellis: ON
Line Status: No Defect
Training Status: Showtime
Down Up
SNR (dB): 9.1 21.0
Attn(dB): 40.0 21.0
Pwr(dBm): 19.8 12.1
Max(Kbps): 5408 1020
Rate (Kbps): 4992 448
G.dmt framing
K: 157(0) 15
R: 12 4
S: 1 4
D: 32 8
ADSL2 framing
MSGc: 1 1
B: 157 15
M: 1 4
T: 1 1
R: 12 4
S: 1.0759 4.2500
L: 1264 128
D: 32 8
Counters
SF: 4689260 4689260
SFErr: 184 15
RS: 318869710 79715414
RSCorr: 14765693 15
RSUnCorr: 1295 0

HEC: 143 8
OCD: 1 0
LCD: 0 0
Total Cells: 938559231 0
Data Cells: 82094102 0
Drop Cells: 0
Bit Errors: 0 0

ES: 138 0
SES: 0 0
UAS: 14 0
AS: 79717

INP: 1.21 1.00
PER: 1.88 1.85
delay: 8.60 8.50
OR: 29.74 30.11

Bitswap: 0 0

Total time = 22 hours 9 min 1 sec
SF = 4689260
CRC = 184
LOS = 0
LOF = 0
ES = 138
Latest 1 day time = 22 hours 9 min 1 sec
SF = 4689260
CRC = 184
LOS = 0
LOF = 0
ES = 138
Latest 15 minutes time = 9 min 1 sec
SF = 31860
CRC = 2
LOS = 0
LOF = 0
ES = 1
Previous 15 minutes time = 15 min 0 sec
SF = 52923
CRC = 3
LOS = 0
LOF = 0
ES = 2
Previous 1 day time = 0 sec
SF = 0
CRC = 0
LOS = 0
LOF = 0
ES = 0
15 minutes interval [-30 min to -15 min] time = 15 min 0 sec
SF = 52923
CRC = 2
LOS = 0
LOF = 0
ES = 2
15 minutes interval [-45 min to -30 min] time = 15 min 0 sec
SF = 52982
CRC = 2
LOS = 0
LOF = 0
ES = 1
15 minutes interval [-60 min to -45 min] time = 15 min 0 sec
SF = 52923
CRC = 0
LOS = 0
LOF = 0
ES = 0
Showtime Drop Reason: 0
Last Retrain Reason: 0
#
#
Standard User RobertoS
(sensei) Sat 30-Jun-12 09:30:10
Print Post

Re: slow speeds - netgear dg834g v4 error reporting ??


[re: Anonymous] [link to this post]

That's looking far better.

So long as nothing strange happens, you now need to leave things alone for 8-12 days, as the DLM has scope to lower the noise margin and so increase the connection speed. It takes 10-14 days to do that if it thinks the line will sustain it. You've already done 2 days.

It may disconnect you overnight after that time, and reconnect with 6dB and higher sync. Around 500-750kbps increase. Keep a check on stats and let us know then whether it happens or not.

Once we are past that stage, we need to look at why it doesn't then connect at more like 7Mbps, which is what is indicated by the 40dB attenuation. There is an ongoing problem, but we need to see what the DLM thinks of the stability by seeing what it does to the noise margin.

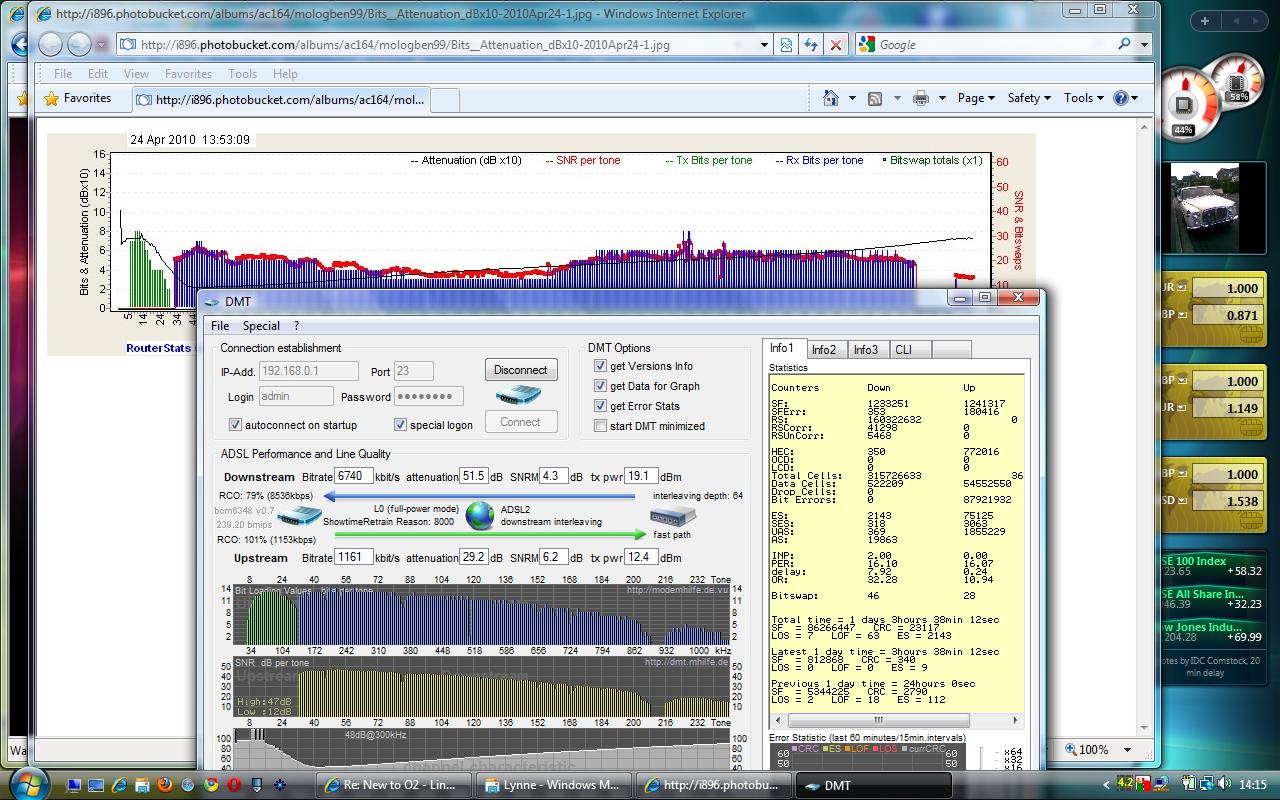

What you could do now though is download DMT v8.07, (read what I say about it on the page I gave you a link to at the start for the telnet stuff), and get that to show the bit loading graph, as in this screen shot. Upload that somewhere for us to see. That could help us diagnose the problem.

You can monitor the noise margin with that, but whatever you do do not use it to alter any settings at this stage! You could mess things up during the 8-10 days. Or in fact at any time without us telling you what to set to what smile.

Good luck.
