Odd "ethernet" cable - what is it?


[link to this post]

I've been working on a Unifi installation in France and the way I generally do things is to work with local electricians so that they do the cable runs and I do the rest. I always specify Cat6 or Cat6A U/FTP cable and I've never had a problem before.

This time, one of the cable runs has been done using this and I've never seen anything like it. It's really bizarre confused

Three pairs (orange, blue, green) have cores with an insulation diameter of 1.00mm and are bundled together in one foil screen. The brown pair is in a separate foil screen and has an insulation diameter of 1.30mm. The conductor diameter is greater too.

The overall cable sheath is oval.

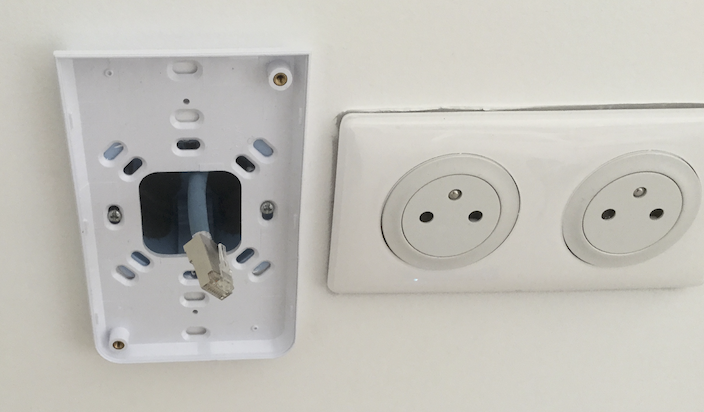

We ended up with this cable from the electrical wholesaler because the previous cable (of more usual construction) had all eight cores of 1.30mm diameter and it won't fit the RJ45 plugs I have. It needs to in order to plug into the rear of Unifi in wall access points comme ça.

Sarah

--
If I can't drink my bowl of coffee three times daily, then in my torment, I will shrivel up like a piece of roast goat

Spiders on coffee - Badass spiders on drugs
Standard User Ancient_Mariner
(eat-sleep-adslguide) Fri 24-Jul-20 23:41:24
Print Post

Re: Odd "ethernet" cable - what is it?


[re: caffn8me] [link to this post]

Off the top of my head, could it be intended for a proprietary POE system?

Not the usual POE where 7 & 8 are joined as one conductor and 4 & 5 as the other. Using just two thicker conductors would release a pair for something else. Perhaps a Press Switch for a Door Entry Video system or Door Bolt release?
